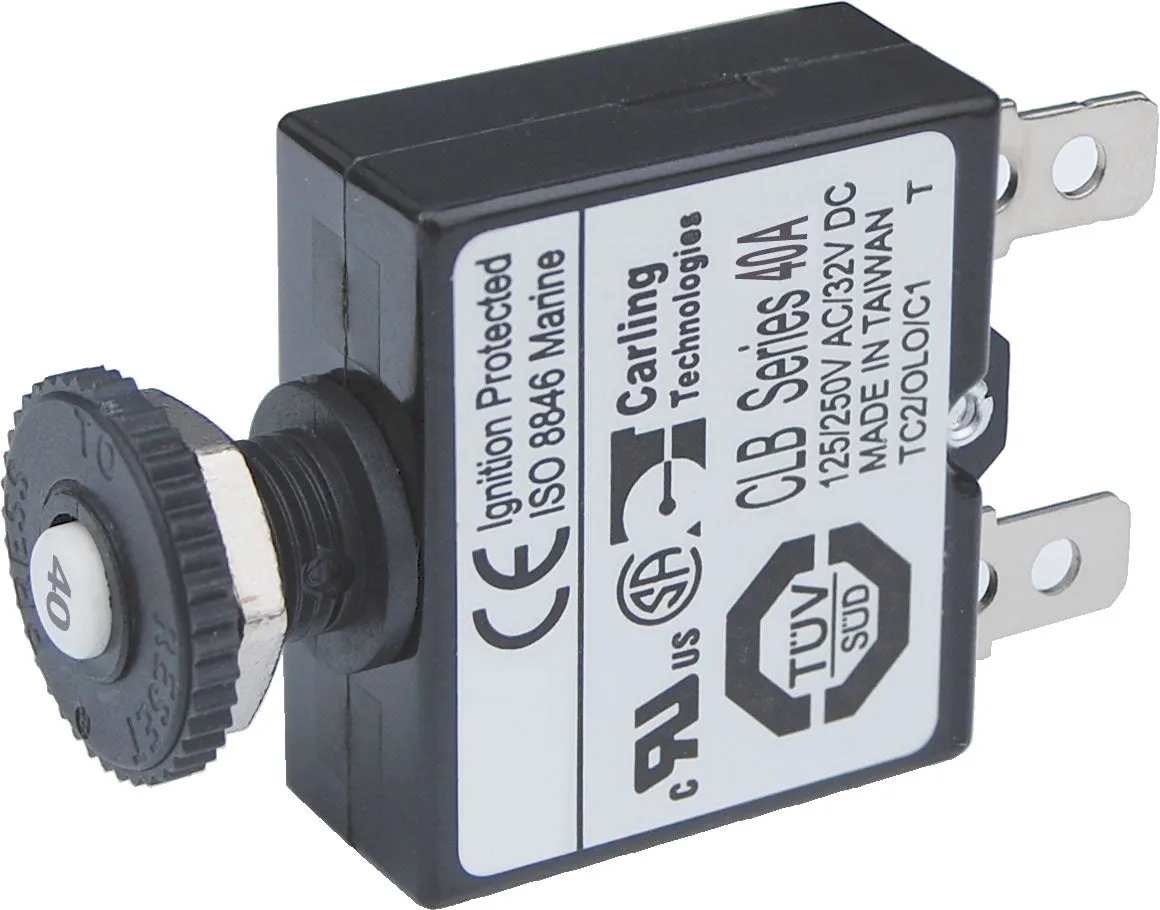

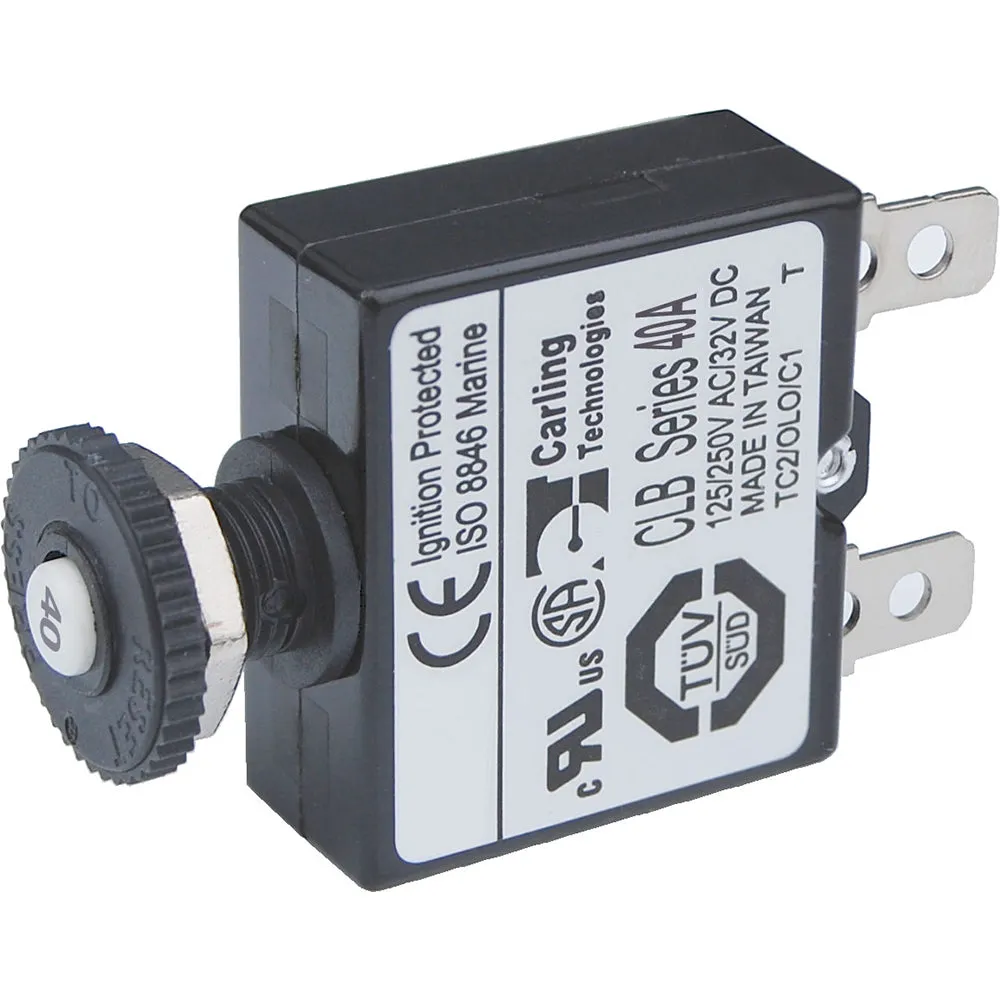

Blue Sea 40A Push Button Quick Connect Circuit Breaker

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 40 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)


• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels


• Compact design enables high density circuit protection configurations


• Push-to-reset operation


• "Trip Free" design cannot be held "ON" during fault current condition


• Ignition protected - Safe for installation aboard gasoline powered boats


• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Amperage
40A

Maximum Voltage
32vDC

Mounting
Panel Mount 3/8-27 UNS

Circuit Breaker Type
Thermal trip, manual push-button reset only

Terminal Type
1/4 Male Quick Connect

Interrupt Capacity
3000A @ 14.7V
2500A @ 28V

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
60° C
